Air Sentry Replacement Dessicant for X-100
0 ratings | Submit a rating
$109.84
Contamination control breathers for severe environments

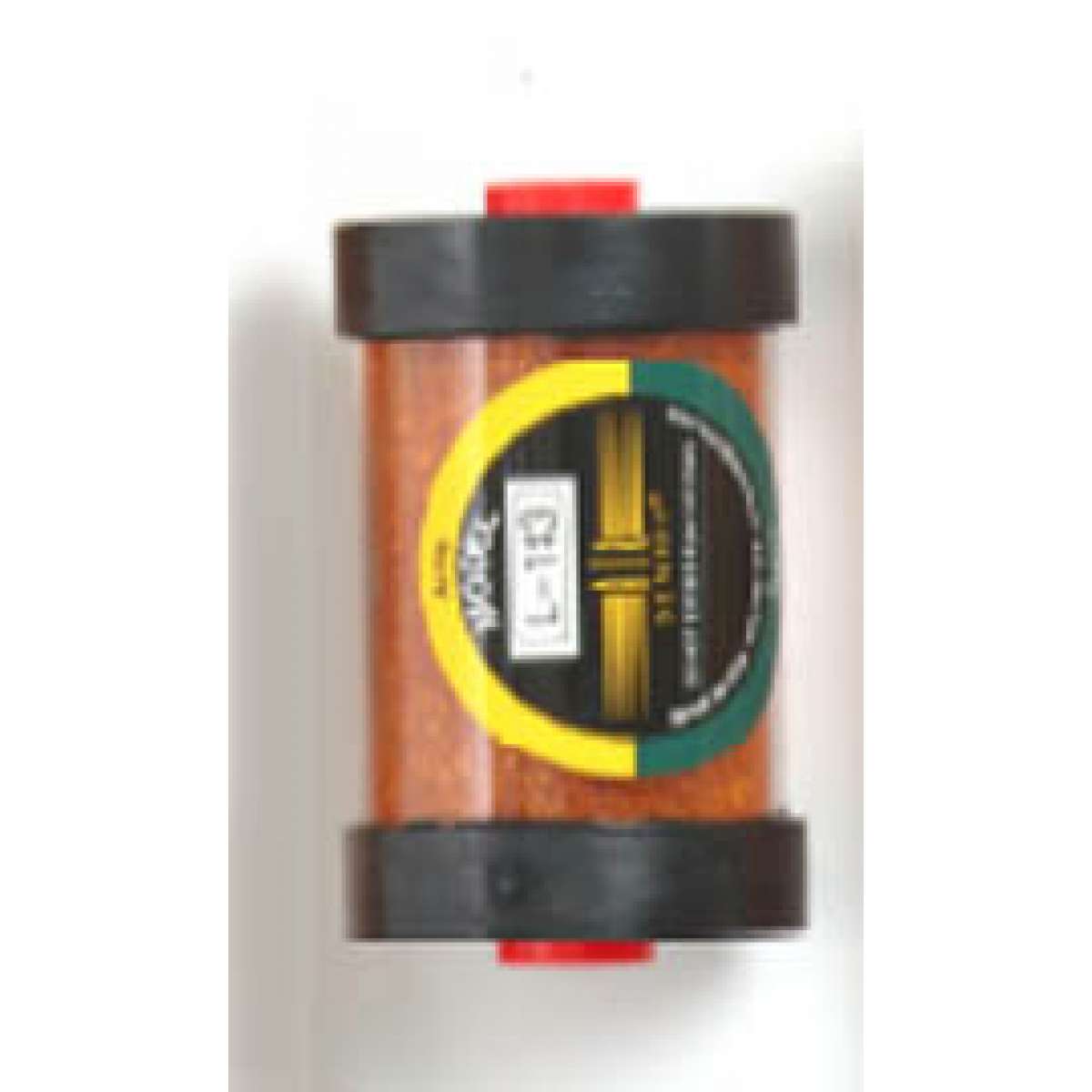

Replacement Desiccant Cartridge for X-100 Air Breather.
Replacement Desiccant Cartridge for X-100 Air Breather.
Brand: Air Sentry
Part Number:
L-143
SPECIFICATIONS
- Maximum H2O capacity: 0.2 lb / 0.1 ltr
- Port Sizes: 1/2" F-NPT
- Nominal Air Flow Rate: 10 CMF (284 L/min) Equivalent of 75 gpm of fluid volume change
- Solid Contaminant Filtration Level: 2 micron, 100% efficiency @ 10 CFM air flow
- Operating Temperature Range: -20° to 200°F / -28° to 93°C
- Silica Gel Adsorption: Up to 40% of its weight of water
- Silica Gel Lowest Operational Dew Point: -100°F / -73°C
- Chemical Resistance: Resistant to alkalis, hydrocarbons, non-oxidizing acids, salt water and mineral or synthetic oils
FEATURES
- Bi-directional Air Flow - Air entering is cleaned and dried. Expelled air partially regenerates the silica gel and "backflushes" the particulate filter to prolong the life of the breather.
- Durable Construction - Air Sentry is manufactured from rugged ABS plastic and impact-modified Plexiglas.
- Water Vapor Adsorbent - The silica gel used in Air Sentry breathers is chemically inert, non-corrosive, and conforms to all regulated toxicity standards in the U.S. and other countries. Microscopic pores allow the silica gel to adsorb up to 40% of its own weight.
- Color Indicator - When maximum adsorption is reached, the silica gel turns from gold to dark green to indicate that replacement of the breather is required.
- Activated Carbon - As air is expelled from the tank, it passes through activated carbon which remove oil vapors, fumes, and odors.
- Safety Sealed - Seals keep moisture from entering the units until they are placed in service. They are easily removed without tools or sharp instruments.
