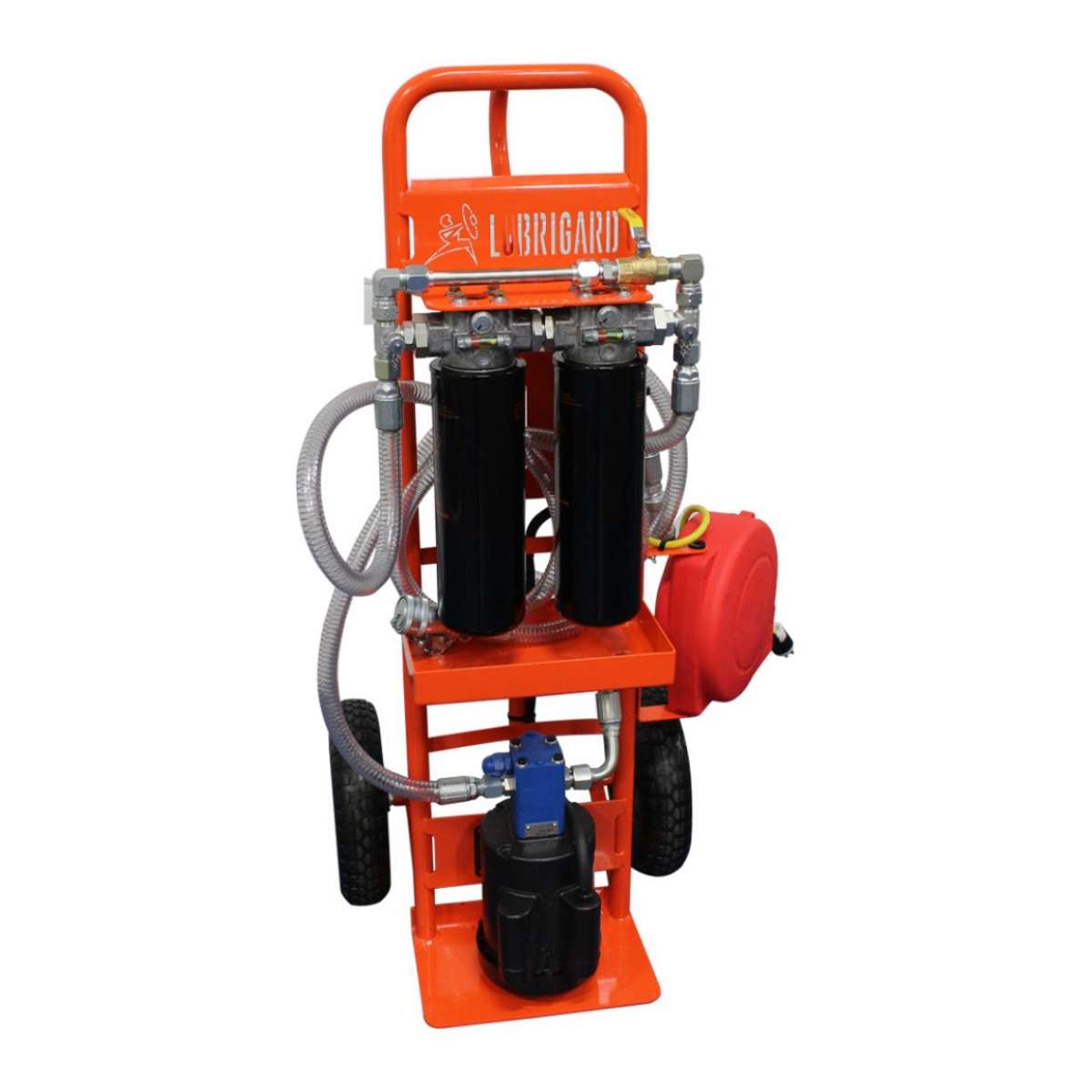

Lubrigard D Series Filtercart

The Y2K HT-D Series Filter Cart is our signature filter cart and is an excellent choice for "off-line" filtration in a wide variety of settings. Extremely mobile and lightweight, this filter cart has all the power needed for filtering oil viscosities up to 600cSt (ISO VG 680). This filter cart is completely customizable to fit all of your needs.

Typical Applications:

• Filtering contaminated system
• Flushing new or repaired systems
• Pre-filtering new oil
• Transferring oils
• Topping off reservoirs
• Collecting oil samples for analysis
• Dispensing new oil

• Dual 50 PSI Bypass Filter Heads With Color Coded Slide Type Differential Pressure Indicators
• 7 Micron Beta 2000 First Stage P1065
• 4 Micron Beta 2000 Second Stage P1066
• 5 GPM Heavy Duty Cast Iron Pump
• 1HP Motor TEFC, 115VAC
• 10' Suction 3/4" PVC Type Hose With ISO B Quick Disconnects And Steel Dust plug
• 15' Discharge 1/2" PVC Type Hose With ISO B Quick Disconnects And Steel Dust plug
• 2" Drip Pan Under the Elements For Minor Spills
• 40' Retractable Electric Cord Reel
• Powder Coated: Safety Orange
• Manual Filter Bypass
• Oil Sample Ports Up/Down Stream of the Filter Elements
• Flat/Maintenance Free Tires
• NOTE: ITEM MAY NOT BE EXACTLY AS SHOWN

• Frame: Carbon steel with drip pan
• Paint: Industrial powder coat; various colors available
• Motor: 1HP, 115vac, 60Hz or Pneumatic Air
• Filter Heads: Medium pressure, steel heads
• Pump: Heavy duty steel gear pump. Available in 1, 2, 5 and 10 GPM
• Connections: ISO A, ISO B, Flush Face and Camlock options available
• Hoses: 7ft. Clear PVC, steel reinforced hose or hydraulic hose
• Power Switch: Sealed on/off power switch
• Filter Indicators: Slide bar indicator triggers at 50psid when elements need to be changed
• Pump Relief: Opens at 150psi
• Weight: Approx 125lbs (will vary depending on options)
