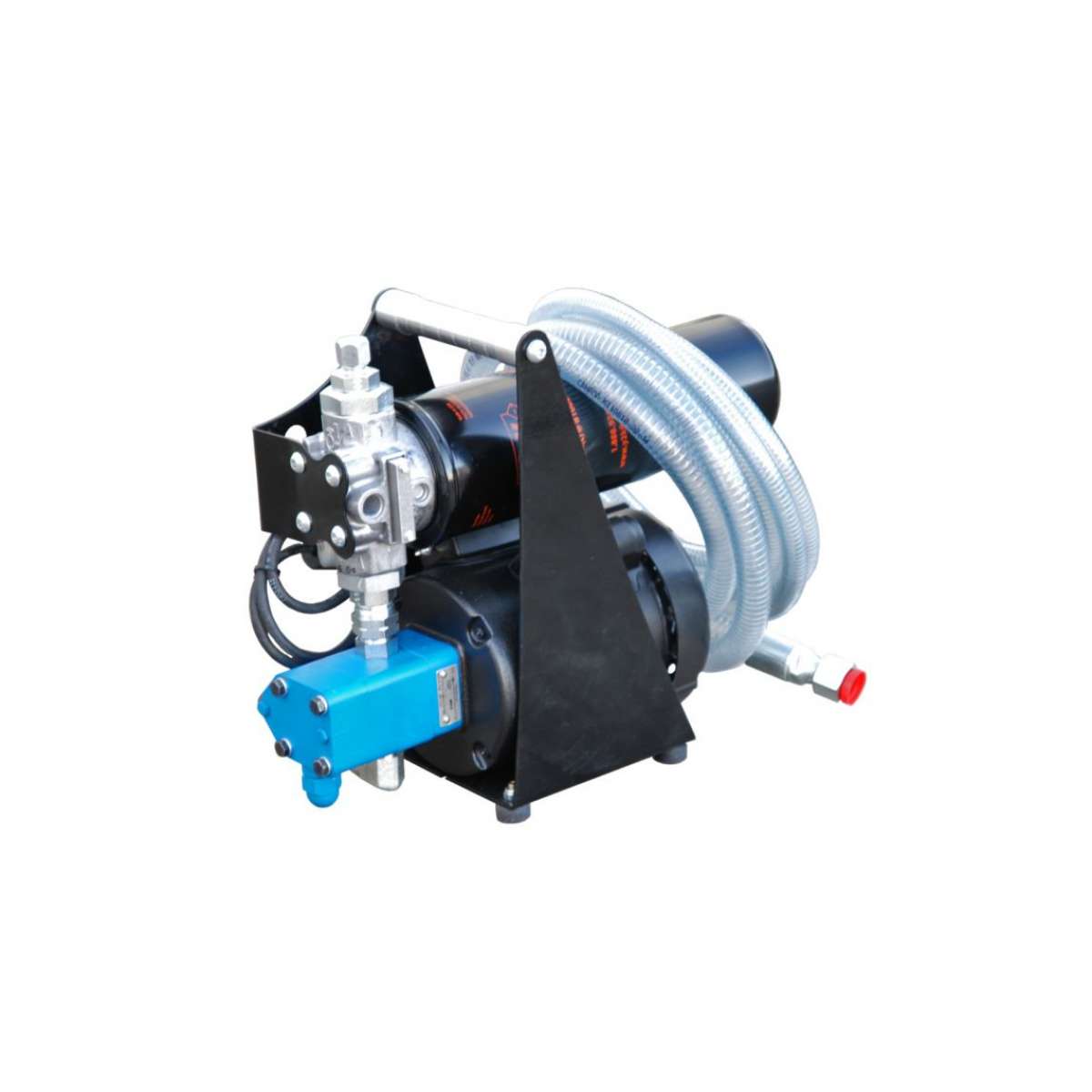

Lubrigard Filter Pak, Air Motor, 1GPM

Perfect for situations with minimal storage space, the FP-D FilterPak combines style and convenience in a compact design that allows the operator to carry it just about anywhere. This powerhouse has the ability to filter oil viscosities up to 600cSt (ISO VG 680) at 100°F within ambient temperature ranges of -15°F to 150°F. All Y2K products are 100% customizable upon request.

Typical Applications:

• Filtering contaminated system
• Flushing new or repaired systems
• Pre-filtering new oil
• Transferring oils
• Topping off reservoirs
• Dispensing new oil

• Compact Handheld Filter Pak Aluminum Frame Air Motor 1GPM
• Single 50 PSI Bypass Head With Color Coded Differential pressure Indictor Single 4 Micron Beta 2000 Filter Element P1066
• Air Operated Motor 1.5 HP
• Filter, Regulator and Lubricator for the air motor
• 7' Suction and Discharge Hoses With ISO B Quick Disconnects (3/4" and 1/2")

• Frame: heavy duty, diamond plated aluminum frame
• Paint: Multiple color options available
• Motor: 1/2HP, 115vac, 60HZ
• Filter Heads: Medium pressure, steel heads
• Pump: Heavy duty steel gear pump. Available in 1, 2 and 5 GPM
• Connections: Various quick connect options with steel dust plugs
• Hoses: 2 ea, 7 ft. Clear PVC, steel reinforced hose or hydraulic hose
• Power Switch: On/Off toggle switch
• Filter Indicators: Slide bar indicator triggers at 50psid when elements need to be changed
• Pump Relief: Opens at 150psi
• Weight: Approx 50lbs (will vary depending on options)
