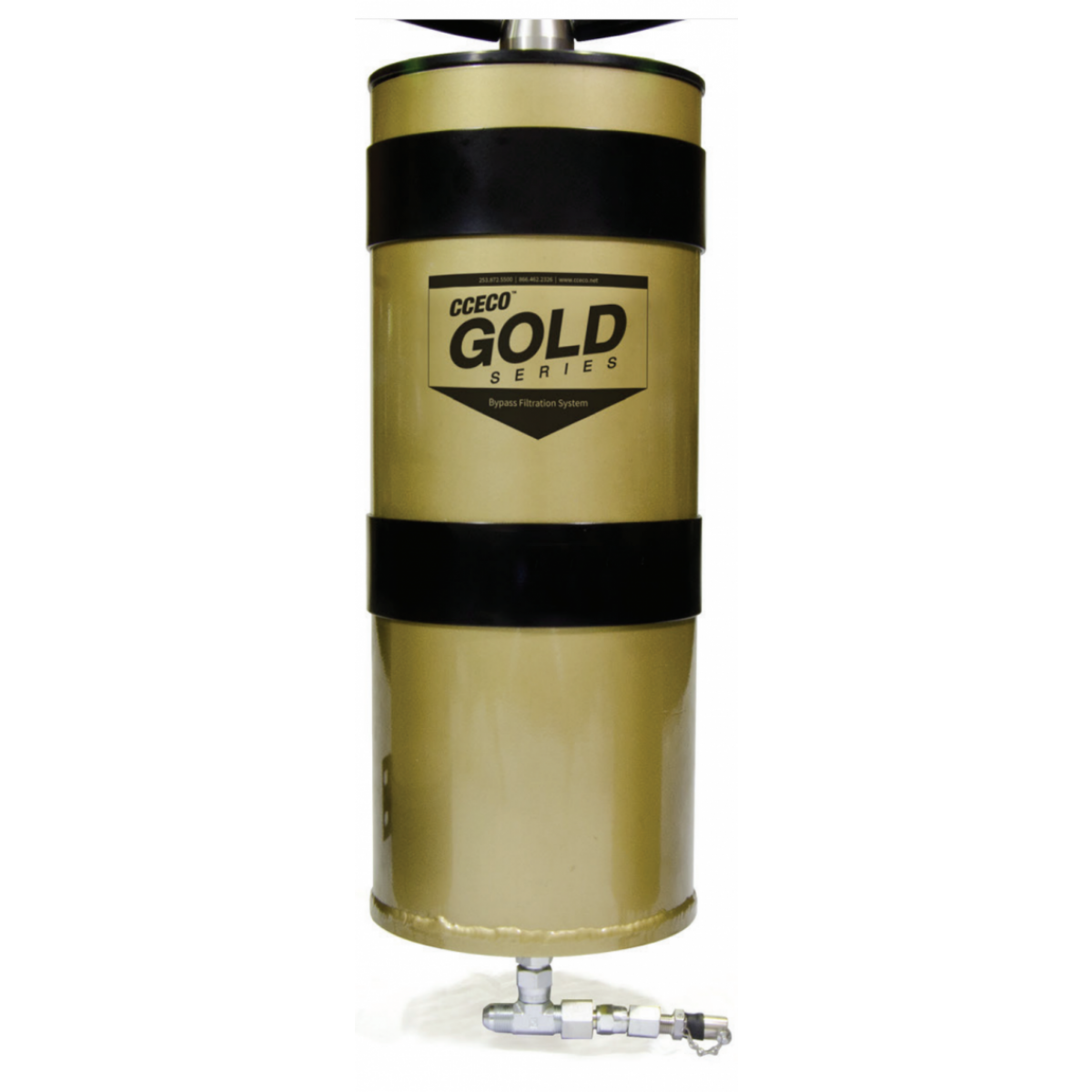

Lubrigard Gold Low Pressure Series GLP100
O Rrings
Preventing contamination damage saves
significant time, money and resources. Designed
for low pressure systems, the GLP units remove
large particles, fiber, sludge and water, but we
don't stop there - the GLP's also "polish" the
fluid by removing silt and fine particles down to 1
micron.
No tools are necessary for element changes
with our T-bar style handles. The GLP series is
built around heavy duty construction allowing
for mounting on high vibration equipment. Push
button sample ports are provided for easy oil
sampling. By filtering down to 1 micron, These
units maintain cleanliness levels several grades
cleaner than brand new oil, which significantly
extends the life of lubricated components and oil.
- OVERALL DIMENSIONS (W x L x H): 11" x 13" x 28"
- NET WEIGHT (w/element) : 40 lbs (18.2 kgs)
- FILTER HOUSINGS: 1
- RESERVOIR CAPACITY: 60 gal* (228 liters)
- DIRT HOLDING CAPACITY: 5 lbs
- WATER HOLDING CAPACITY: 1 gallon
- HOUSING OIL CAPACITY: 20 quarts
- INLET DIAMETER: #8 JIC male
- OUTLET DIAMETER: #8 JIC male
- VISCOSITY CAPABILITIES: 10/460 cSt
- OIL (ISO) CLEANLINESS: 16/15/12 or better
- Filters down to 1 micron, several grades cleaner than new oil
- Moisture removal down to 100ppm
- Lower ISO codes
- Dramatically extends oil life and rebuild cycles
- Media flow path 30-50 times longer than full flow, in-line filter elements
- Extends total base number (TBN) life
- Sample port for easily drawn oil samples
- Depth-style filtration for maximum dirt holding capacity and efficiency
- Reduces Contamination Failure in Hydraulic Systems, Transmission Fluids, Mobile Hydraulic Systems and Stationary Hydraulic Systems
