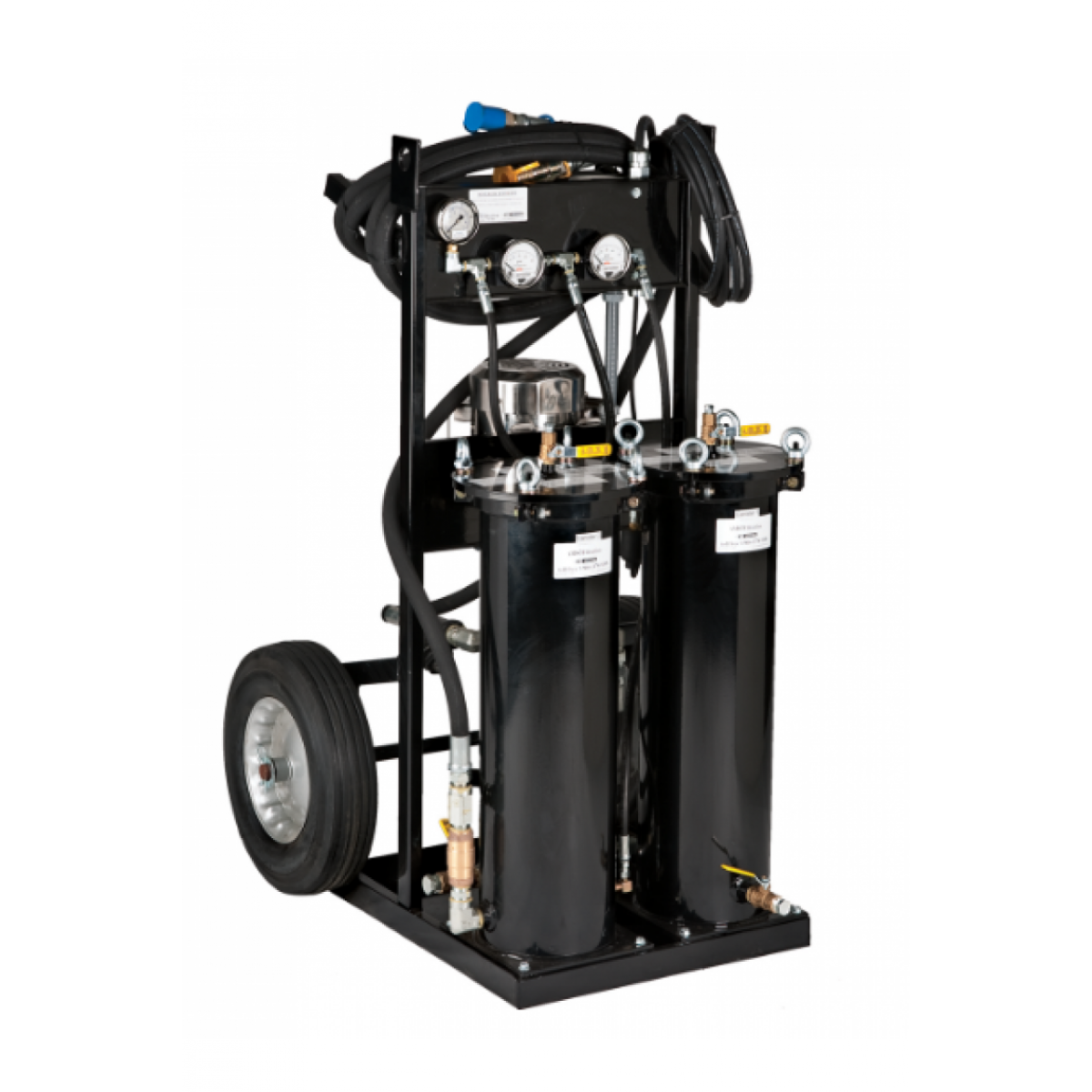

Des-Case TC Series Filter Cart 30 gpm pump 5 hp electric motor With Integrated Contamination Monitoring Cente

The TC Series of filtration systems represent the highest quality and most rugged systems available for purifying all types of industrial oils. These heavy-duty carts are capable of removing particles and/or free water from all types of oil—even high viscosity gear oils—and are designed for years of dependable service.

TC Series filter carts are ideal for large reservoirs with high flow rates. With canisters that can accommodate multiple filter types such as microfiberglass drop-in filters, depth filters and bag filters, the TC Series carts can remove everything from large particles and debris, sludge, varnish, and water contamination.

• 30 gpm pump / 5 hp electric motor, 3 phase 230 vac, 60 hz, 1800 rpms, 12.6 amps
• 6x36 Cartridge - 7 µm Micro-Glass 6x36 Cartridge Filter ß7(c)=1000
• 6x36 Cartridge - 5 µm Micro-Glass 6x36 Cartridge Filter ß5(c)=1000
• Standard Sample Valve
• Standard Y-Strainer
• With Integrated Contamination Monitoring Center (CMC1AA10121)
• Black
