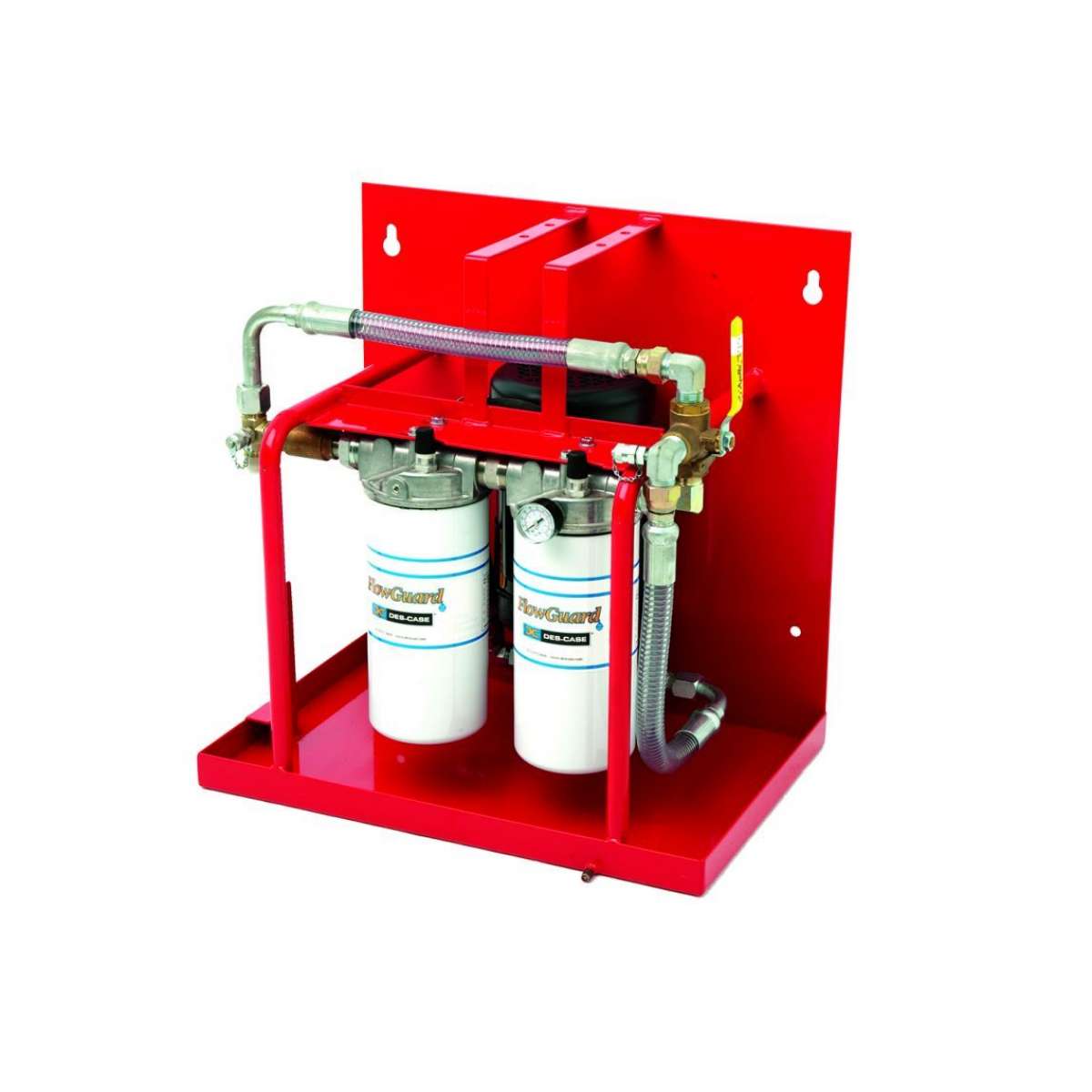

Des-Case FlowGuard Panel Unit

Industry spends millions of dollars annually treating the negative effects of contamination caused by dirt and moisture, such as excess machine wear, production downtime, and repair costs.

Whether you have an application that needs regular filtration, or a maintenance location where you bring equipment to be filtered, our FlowGuard™ panel unit is a made-to-order solution which can be mounted where you need it most.

• 5 gpm pump / 1 hp electric motor, 115 vac, 60 hz, 1725 rpms, 13 amps
• 8" Spin-On - 22 µm Micro-Glass Filter ß22(c)=1000
• 8" Spin-On - 12 µm Micro-Glass Filter ß12(c)=1000
• No Sample Valves
• No Oil Cooler
• No Temperature Gauge
• Manual Filter Bypass Valve
• Red

• Filter bypass - Allows easy transfer of clean oil
• Dual-stage filtration - Ensures optimal lubricant cleanliness
• Industrial powder-coated paint - Provides durability
• Customizable colors - Makes it easy to differentiate between assorted lubricants by paint color selection
• Oil cooler (optional) - Helps extend life of oil
