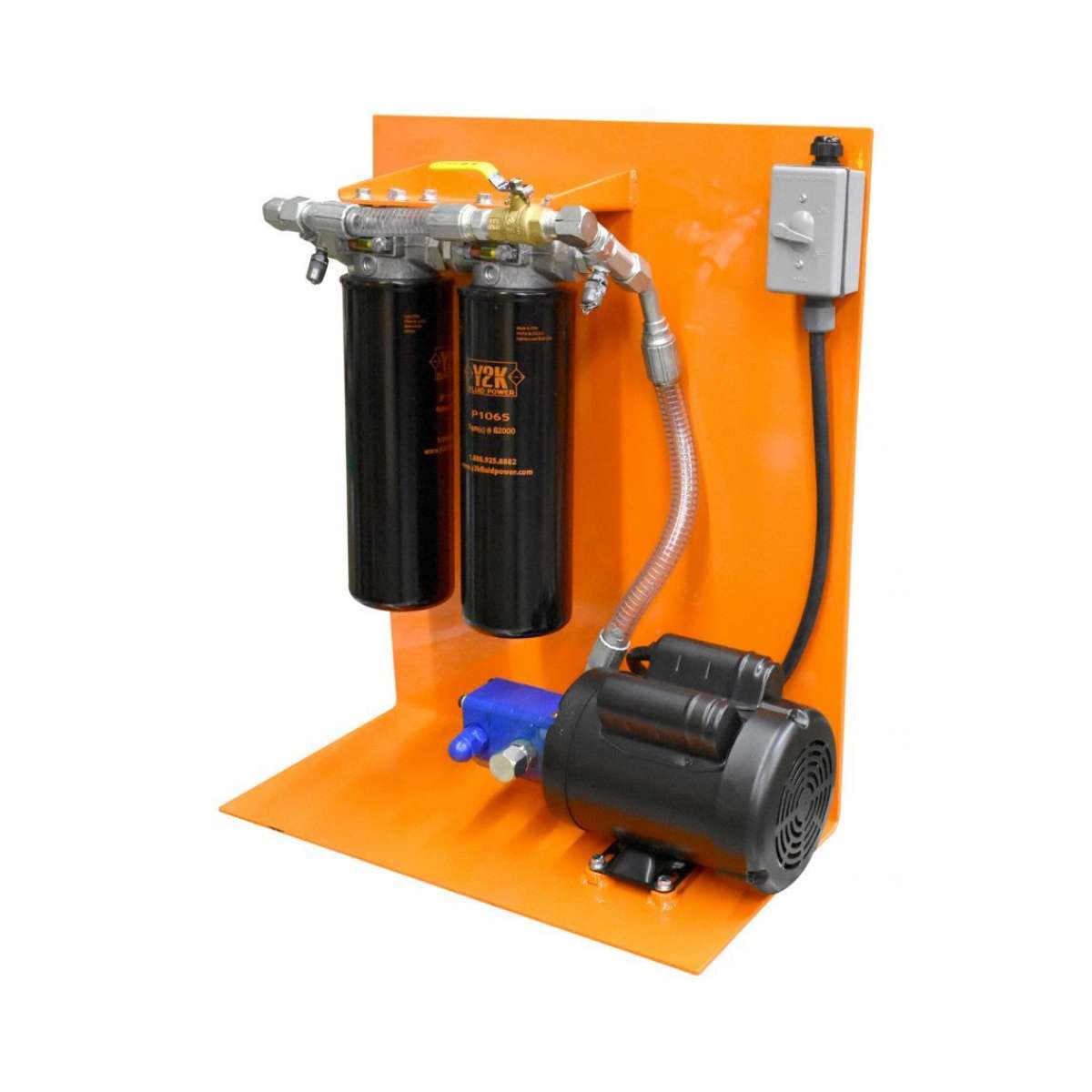

Lubrigard M Series Panel Unit

When you need to install a permanent, continuous duty solution for your offline filtration, the PU-D Panel Unit is the perfect solution. Available in a variety of sizes, it will suit any space requirement you may have. These filtration systems have all the power needed for filtering oil viscosities up to 600cSt (ISO VG 680) at 100F within ambient temperature ranges of -15F to 150F. All Y2K products are 100% customizable upon request.

Typical Applications:

• Filtering contaminated system
• Collecting oil samples for analysis
• Dispensing new oil
• Permanent Installations

• Heavy Duty Panel Unit
• Dual 50 PSI Bypass Filter Heads W/ Pop-up Differential Pressure Indicators
• 6 Micron Beta 1000 First Stage P1069
• 3 Micron Beta 1000 Second Stage P1068
• 1HP Motor TEFC 110VAC
• 5 GPM Heavy-Duty Cast-Iron Gear Pump W/ 150 PSI Relief Valve
• On/Off Motor Starter
• No Hoses & No Cord
• Y Strainer
• Blue Powder Coat

• Heavy Duty Panel Unit M-Series Dual 50 PSI Bypass Filter Heads With Pop Up Indicators First Stage 6 Micron Element Beta 1000 P1069 Second Stage 3 Micron Element Beta 1000 P1068 1 HP Motor TEFC 115VAC
• 2.8 GPM Heavy Duty Gear Pump w/150PSI Relief Valve
• ` No Hoses or Quick Disconnects 8' Electric Cord With Three Prong Plug Textured Black Powder Coat Lubrigard Manual and Serial Number (Private Branded)
