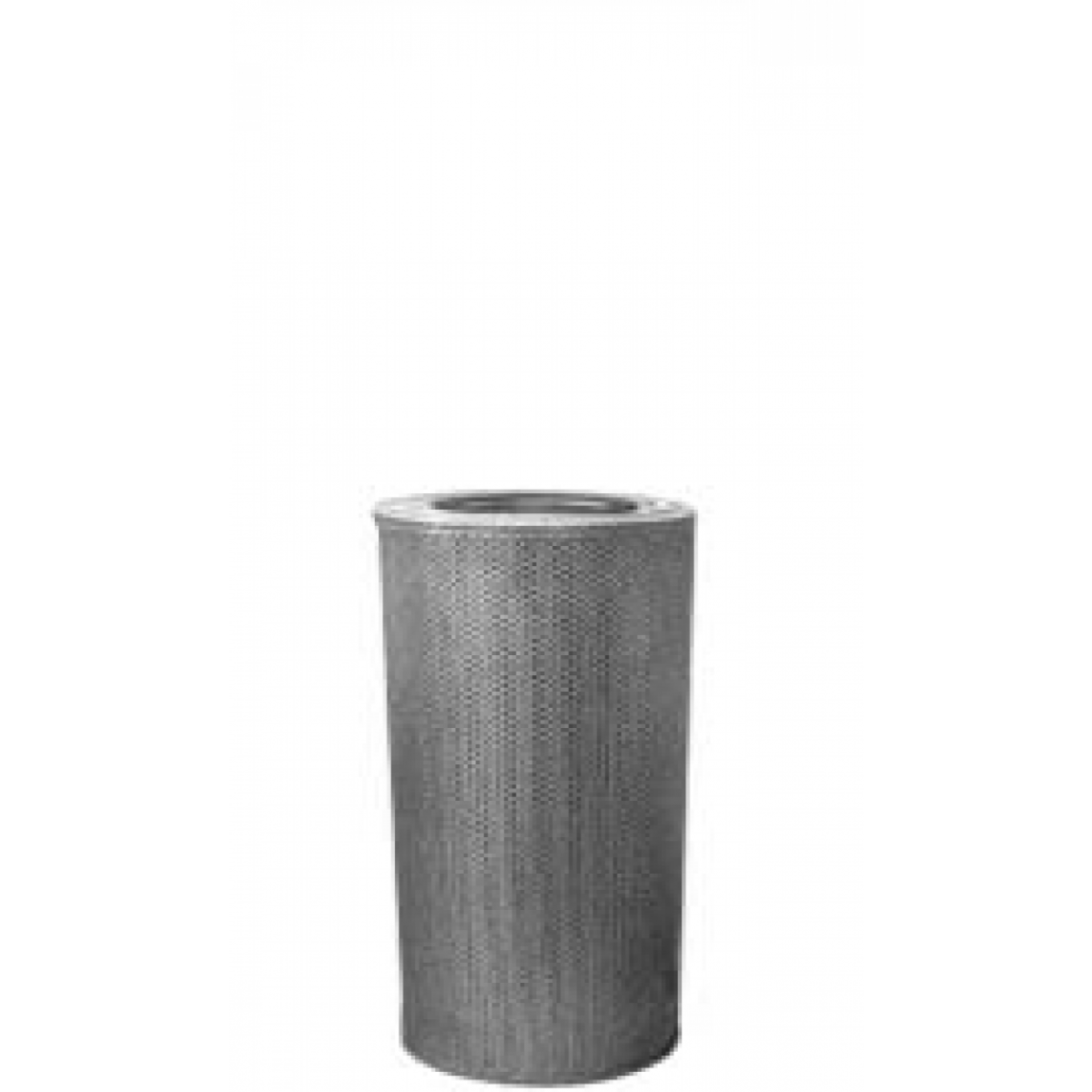

Lubrigard Full-flow Micro-fibreglass Filter Element (3 micron)
0 ratings | Submit a rating
$303.75
Micro-fiberglass Filters
Elements designed for AMS 618, VAC, HVAC and other Filtration Systems utilizing Full Flow Filtration
Elements designed for AMS 618, VAC, HVAC and other Filtration Systems utilizing Full Flow Filtration
Brand: Lubrigard
Part Number:
P61803
SPECIFICATIONS
- Micron Rating: 3 micron
- Beta Ratio: Beta 1000
- Length: 18" ( 45.75 cm)
- Outside Diameter: 6" ( 15.25 cm)
- Maximum Differential Pressure: 150 PSI
- Maximum Flow Rate: 150 GPM ( 568 liter/minute)
- Maximum Viscosity that can be filtered: ISO 1000
- Fluids that can be filtered: Oil, Synthetic Lubes, Water based fluid
FEATURES
- Epoxy-Coated Steel Support Mesh (Upstream and Downstream)
- Provides excellent pleat support and spacing
- Protects against media damage during handling and installation
- Excellent compatibility
- Allows for maximum effective media area
- Media Support Layers (Upstream and Downstream)
- Optimizes media support
- Protects media during pressure surges
- Micro-glass Media - AMS synthetic filter media has smooth, rounded fibers for low resistance to fluid flow. This media is ideal for filtering synthetic fluids, water glycols, water/oil emulsions, HWCF and petroleum-based fluids.
- Synthetic filter media is specially developed for fluid filtration
- High-efficiency media grades with performance to <4(c)=1000 (per ISO 16889)
- Exceptionally low flow resistance
- Consistent performance throughout the life of the filter
- Excellent compatibility
