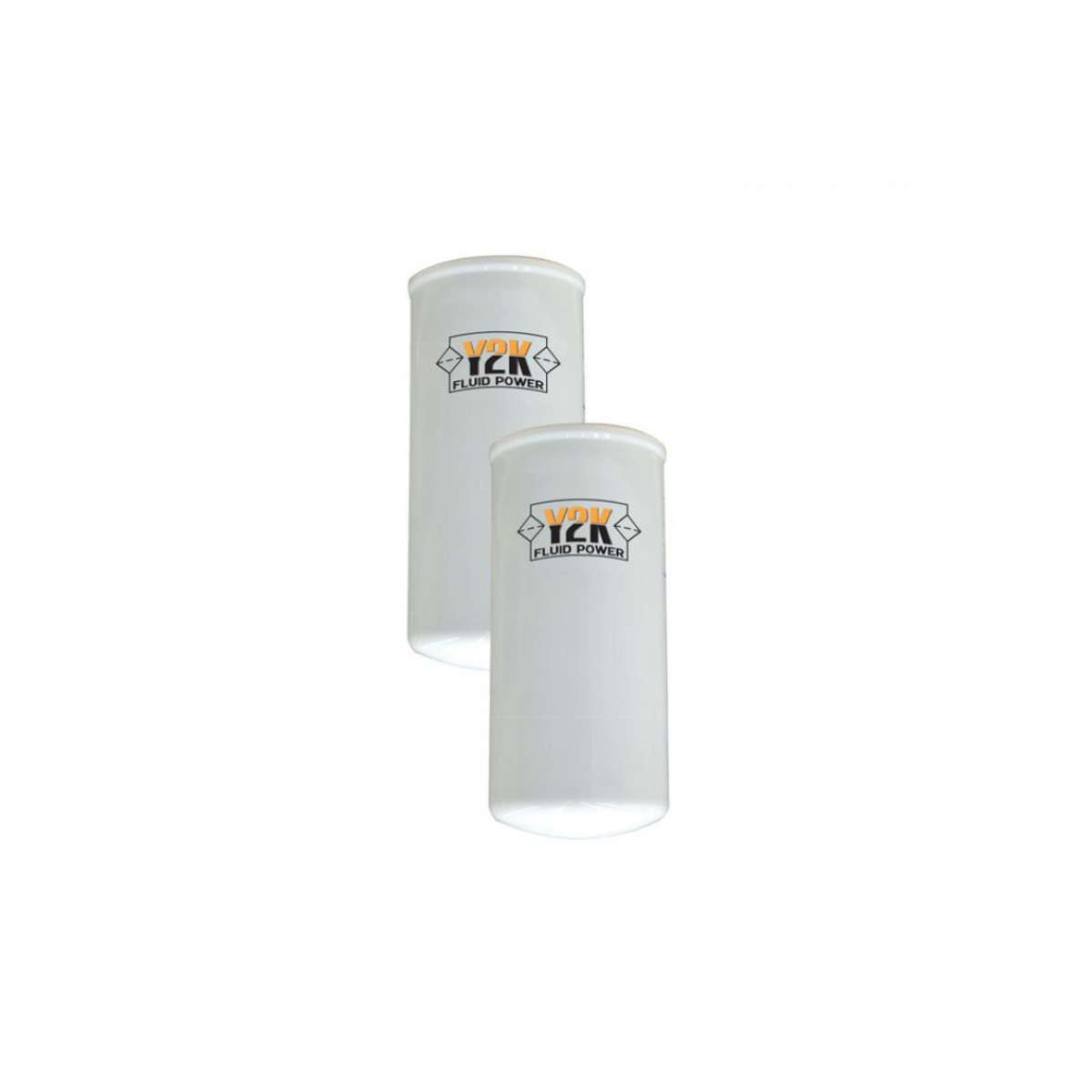

Lubrigard M Series Spin-On Filter Element 10 Micron
0 ratings | Submit a rating
$133.65
When your system demands the ultimate in fluid cleanliness
Our M Series spin-on filter elements are an important line of defense in maintaining fluid quality. These filter elements have a wide range of chemical compatibility, which allows them to be used in most of your industrial applications. They are available
Our M Series spin-on filter elements are an important line of defense in maintaining fluid quality. These filter elements have a wide range of chemical compatibility, which allows them to be used in most of your industrial applications. They are available
Brand: Lubrigard
Part Number:
P1070
OVERVIEW
Benefits:
- Synthetic microfiber media offers a wide range of chemical compatibility
- Minimal pressure drop across a wide range of oil viscosities
- Universal connection makes it easily adaptable and equivalent to many OEM filters
SPECIFICATIONS
- 5.06" x 10.86 inches"
- 10 micron filter element
- (B10 = 1000)
- Desired Cleanliness Level (ISO code): 18/16/13 - 17/15/12
FEATURES
Features:
-
Max working pressure of 175 PSI
- Element Collapse: 200 PSI
- Maximum Flow: 66GPM
- Thread Size: 1 1/2 -16UN
- Operating temperature of -13°F to 230°F
- Fluid Compatibility: Mineral and Synthetic Oils
- Seals and Binding: Buna-N and Epoxy Binding
- Dimensions: 5.06in x 10.86in
