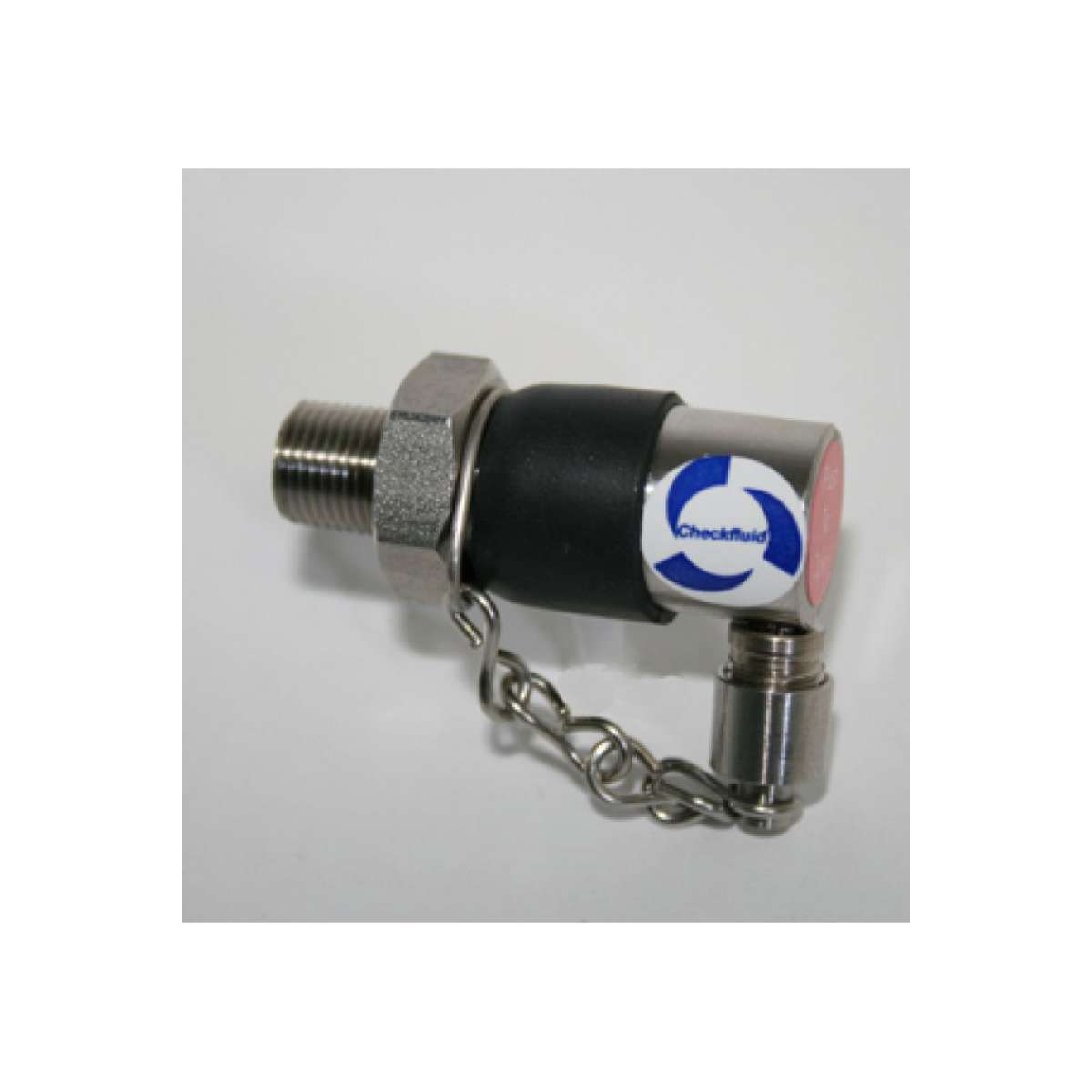

CheckFluid KP series push button sampling valve (Viton/Stainless), 1/8 inch NPT

The KP Sample valves are suitable for all applications, and there simplicity of use make them popular. Take an oil sample simply by pushing a button.

• Body Component: Stainless Steel
• Button/Spout/Cap: Stainless
• Seals: Viton
• Spring: Stainless
• Thread Size: 1/8" NPT
• Sampling Pressure Range: 5 psi to 750 psi
• Max operating pressure: 6,000 psi
• Max burst pressure: 24,000 psi
• Viton seal temperature: -26C to 204C (-15F to 400F)

• 360 degree rotatable spout
• For use on Engines, Hydraulics, Transmissions, Turbines, Compressors
• Sample while the equipment is running (up to 750psi)
• Take hot, circulating, live oil samples directly from pressurized ports to give more representative samples.
• Reduce the time needed to take samples
• Avoid opening system and exposing to external contamination
• Less than 1ml (0.04 fl oz) of deadzone volume to purge
• Avoid the cost of sample retakes and faulty trend data
• Avoid the cost of replacement probes or cross contaminated samples
• Avoid the inconsistency of drain and vacuum pump sampling
