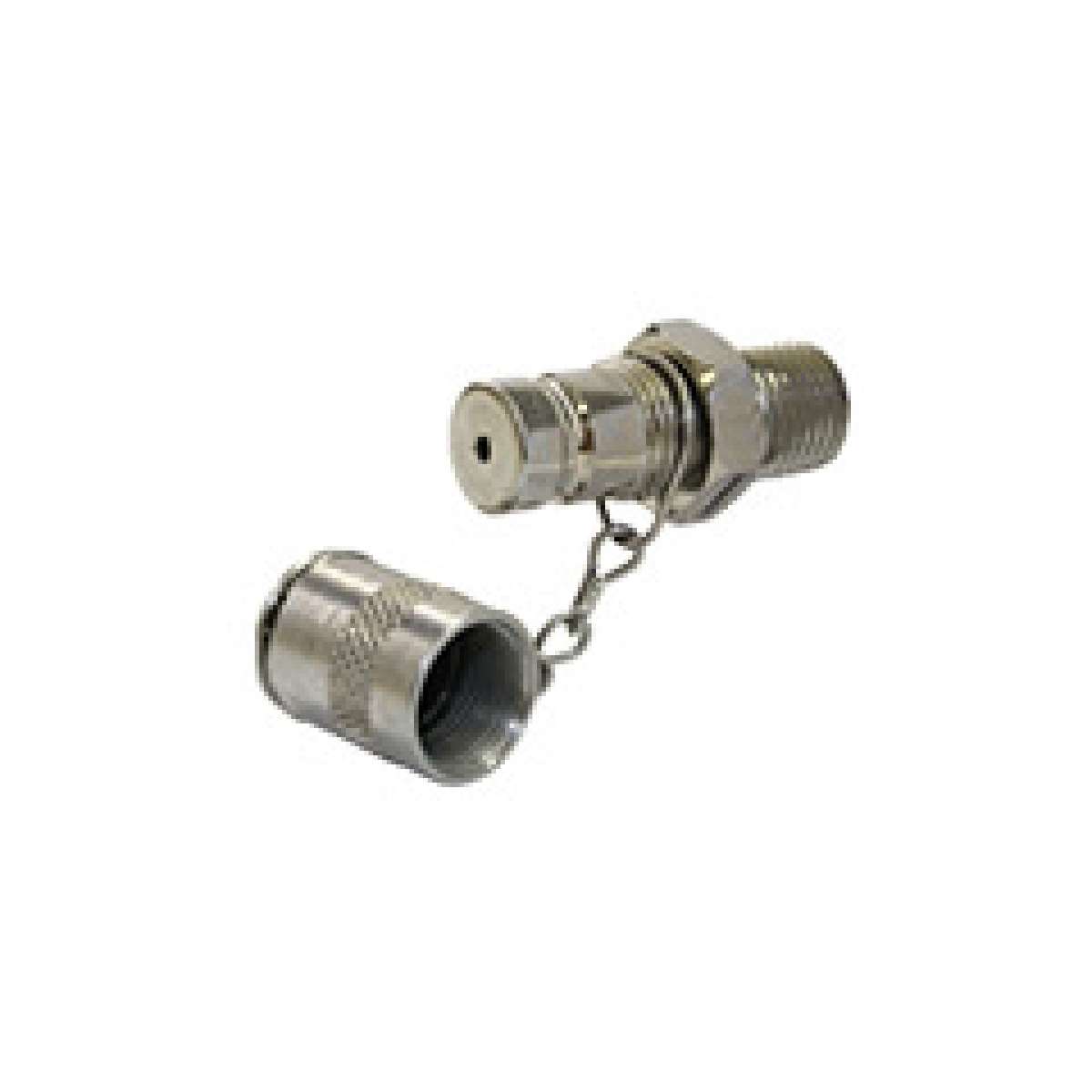

WearCheck KST series probe, 1/4 inch NPTF, viton

The KST Sample valves are suitable for mobile and marine applications, and their unique design makes them suitable for use with the probalizer-style vacuum sampling pump for taking rapid and accurate oil analysis samples.

• Thread Size: 1/4" NPT
• Sampling Pressure Range: 5 psi to 750 psi
• Max operating pressure: 6,000 psi
• Max burst pressure: 24,000 psi
• Viton seal temperature: -26C to 204C (-15F to 400F)
• Seals: Viton

• General off-highway, mobile and marine use.
• For use on Engines, Hydraulics, Transmissions, Turbines, Compressors
• Sample while the equipment is running
• Take hot circulating, live oil samples directly from pressurized ports to give more representative samples.
• Reduce the time needed to take samples
• Avoid opening system and exposing to external contamination
• Less than 1ml (0.04 fl oz) of deadzone volume to purge
• Avoid the cost of sample retakes and faulty trend data
• Variety of probe options for hand sampling and higher pressure dynamic sampling.
• Avoid the mess and inaccuracy of drain sampling and vacuum pump sampling.
