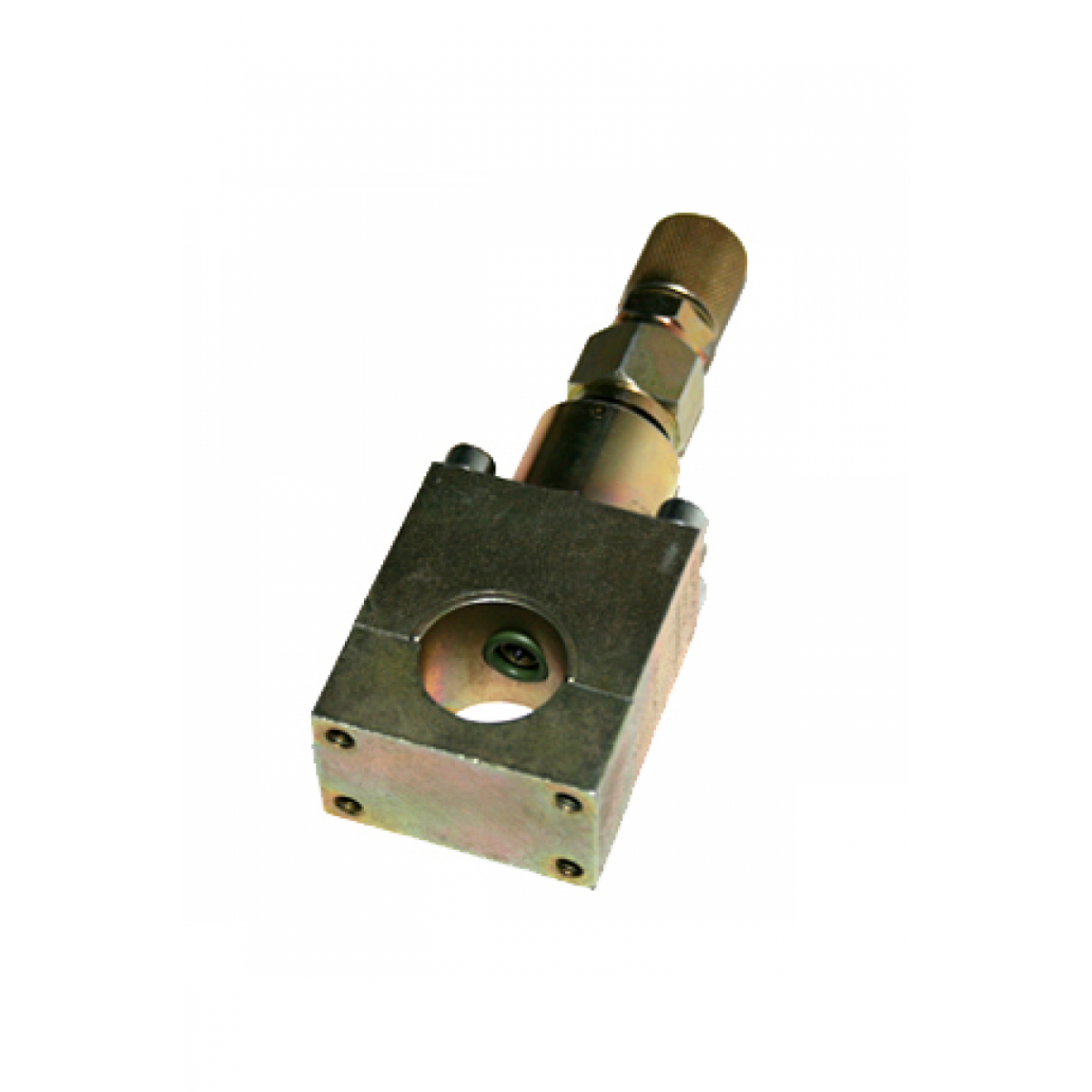

CheckFluid Pressurized Valve Mount 1-1/2 inch

Valve Mounts are an ingenious way of getting around the conundrum of sampling from the system return line. On pressurized systems with a reservoir the recommendation is to sample from the return line. The irony is that the return line is, in almost all instances, devoid of any ports, or an easy place to install a sampling port. The Valve Mount gets around this problem by providing a way of installing a sampling port without the need for a complex retrofit of the return line.

• Pipe Opening: 1-1/2"
• Height: 6.18" (157 mm)
• Width: 2.56" (65 mm)
• Housing: Steel
• Sealing Shell: Steel
• Seal: Viton
• Measuring Needle: Steel
• Maximum Operating Pressure: 9000 PSI
• Maximum Sampling Pressure: 6000 PSI

• Add oil sampling and pressure measuring connections without interrupting plant operation
• After installation connection can stand up to 9000 PSI (620 bar)
• Installation in only a few minutes
• No special tools required
• System is fully sealed off, no external contamination
• No cutting open pipes or special adapters required
• Install only on tube (not available for schedule 80 & 160 pipe)
• Do not use on air or gas pipes
