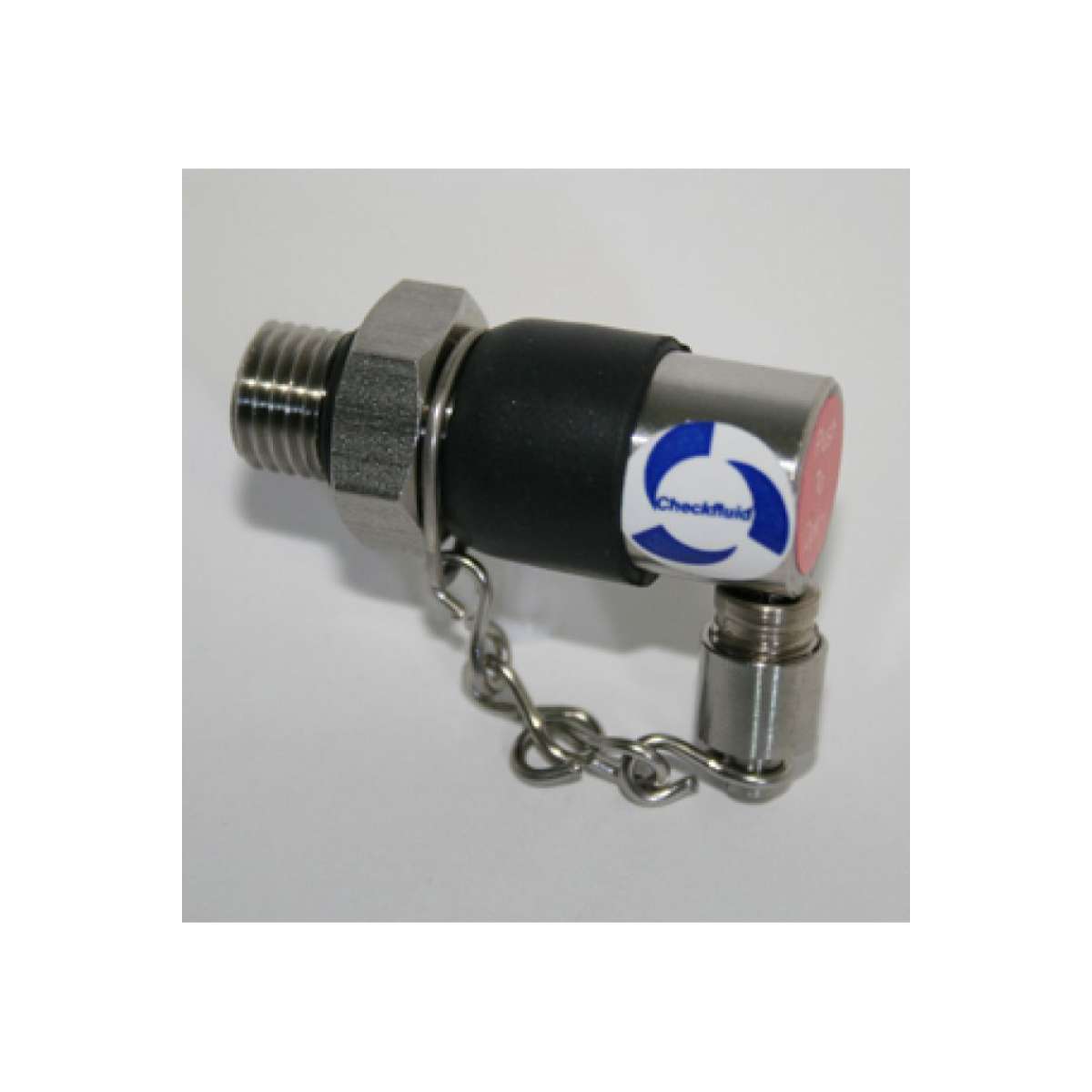

WearCheck Pushbutton Valve, 7/16 inch - 20 ORB, Viton, All Stainles
0 ratings | Submit a rating
$175.93
Rapid Oil Sample Taking
The KP Series Sampling valve allows for sample taking at the "push of a button".
The KP Series Sampling valve allows for sample taking at the "push of a button".
Brand: WearCheck
Part Number:
KP716UV-R
OVERVIEW
The KP Sample valves are suitable for all applications, and there simplicity of use make them popular. Take an oil sample simply by pushing a button.
SPECIFICATIONS
- Body Component: Carbon Steel
- Button/Spout/Cap: Brass
- Seals: Viton
- Spring: Carbon Steel
- Thread Size: 7/16 ORB
- Sampling Pressure Range: 5 psi to 750 psi
- Max operating pressure: 6,000 psi
- Max burst pressure: 24,000 psi
- Viton seal temperature: -26C to 204C (-15F to 400F)
FEATURES
- 360 degree rotatable spout
- For use on Engines, Hydraulics, Transmissions, Turbines, Compressors
- Sample while the equipment is running (up to 750psi)
- Take hot, circulating, live oil samples directly from pressurized ports to give more representative samples.
- Reduce the time needed to take samples
- Avoid opening system and exposing to external contamination
- Less than 1ml (0.04 fl oz) of deadzone volume to purge
- Avoid the cost of sample retakes and faulty trend data
- Avoid the cost of replacement probes or cross contaminated samples
- Avoid the inconsistency of drain and vacuum pump sampling
