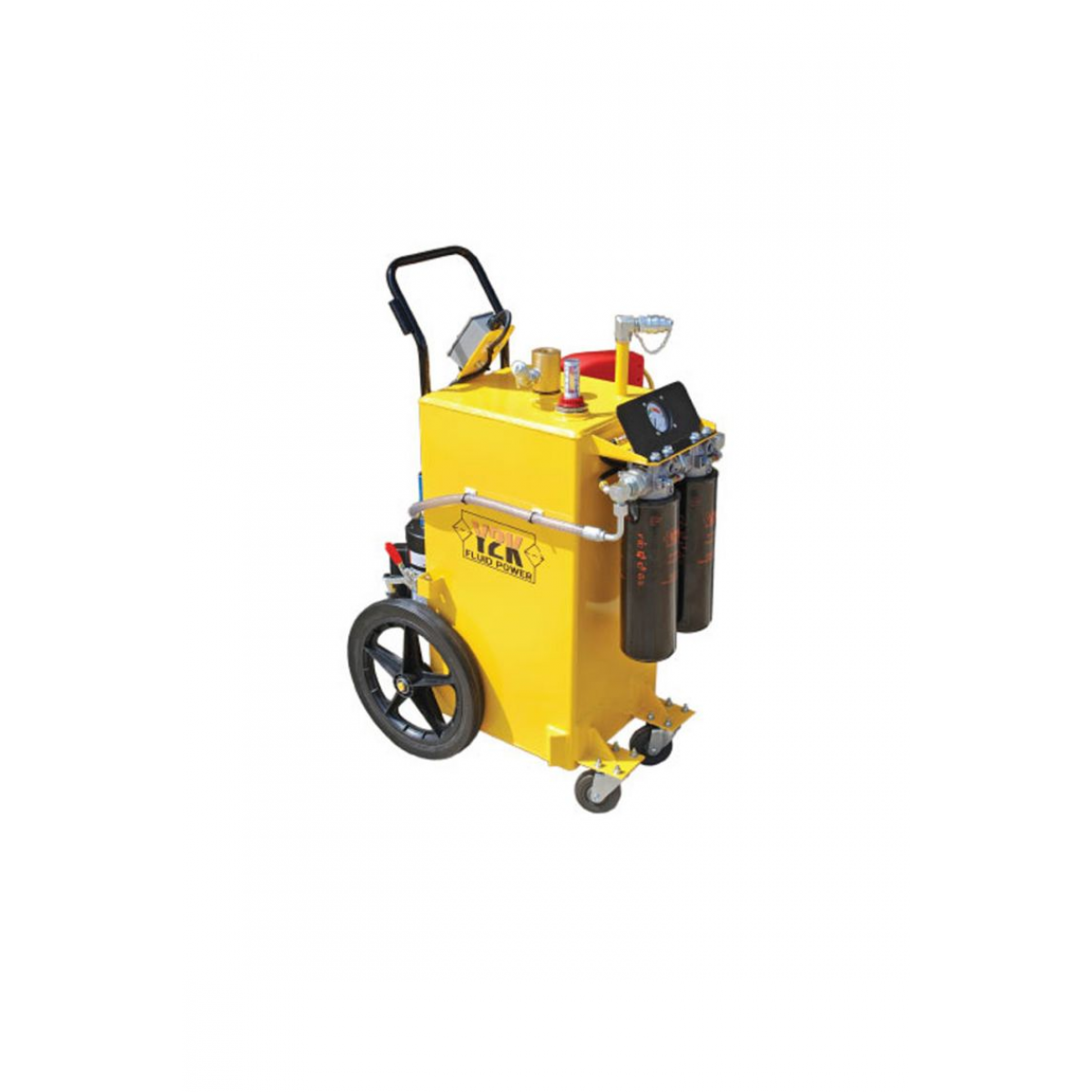

Lubrigard T3 30 Gal Tote 1HP 5GPM

The T-3 Tote is the most versatile tote we make. With its 30 gallon tank, this tote makes filtering, transferring, and topping off reservoirs a breeze. It can fill itself, be used as an off-line filter for cleaning different reservoirs, and to pump oil into various containers. This tote has all the power needed for filtering oil viscosities up to 600cSt (ISO VG 680) at 100F within ambient temperature ranges of -15F to 150F. All Y2K products are 100% customizable upon request.

Typical Applications:

• Filtering contaminated system
• Flushing new or repaired systems
• Pre-filtering new oil
• Transferring oils
• Topping off reservoirs or containers
• Dispensing new oil

• Lubrigard T3 30 Gallon Tote
• Dual 50 PSI Bypass Filter Heads W/ Color Coded Differential Pressure Indicators
• Water Removal First Stage P1048WR
• 7 Micron Beta 2000 Second Stage P1065
• 1HP Motor TEFC 110VAC
• 5 GPM Heavy Duty Cast Iron Gear Pump w/150 PSI Relief
• On/Off Motor Starter
• 7' Suction & Discharge Clear PVC Hoses W/ ISO B Quick Disconnects (3/4" & 1/2")
• 40' Retractable Electric Cord Reel
• Textured Black Powder Coat

• Frame: 30 Gallon heavy duty tank with 4 wheels, two oversized pneumatic tires and two casters
• Paint: Multiple color options available
• Motor: 1HP, 115vac, 60Hz or Pneumatic Air
• Filter Heads: Medium pressure, steel heads
• Pump: Heavy duty steel gear pump. Available in 2, 5 and 10 GPM
• Connections: Various quick connect options with steel dust plugs
• Hoses: 2 ea, 7ft. Clear PVC, steel reinforced hose or hydraulic hose
• Power Switch: On/Off toggle switch
• Filter Indicators: Slide bar indicator triggers at 50psid when elements need to be changed
• Pump Relief: Opens at 150psi
• Weight: Approx 125lbs (will vary depending on options)
